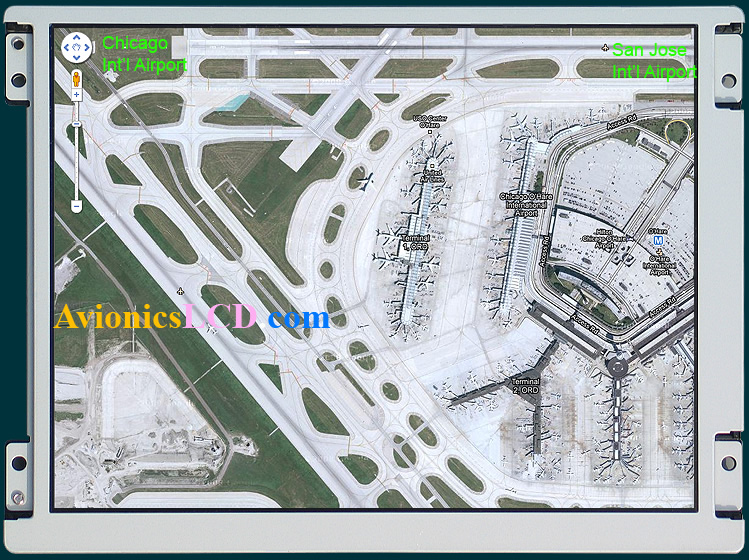

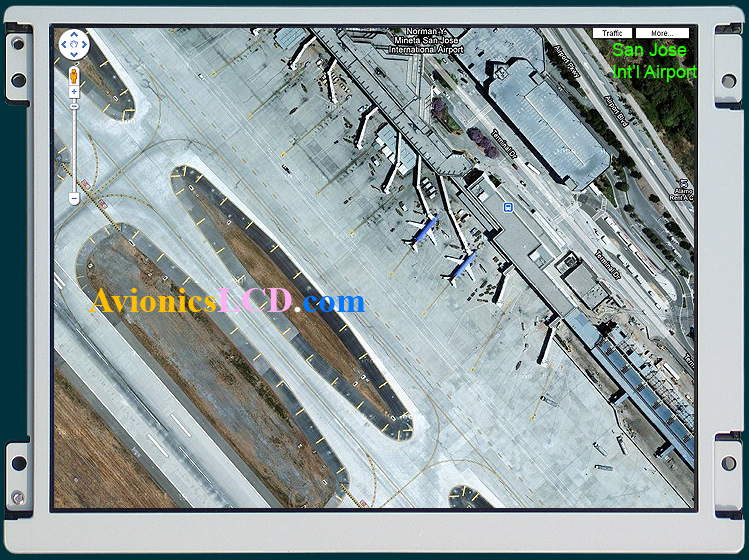

8.4 " LD Screen XGA 1024 x 768 LCD Panel, Super Fine Pitch TFT, X- Bri LED Backlight

152 PPI ( Pixels Per Inch ) Super High Density

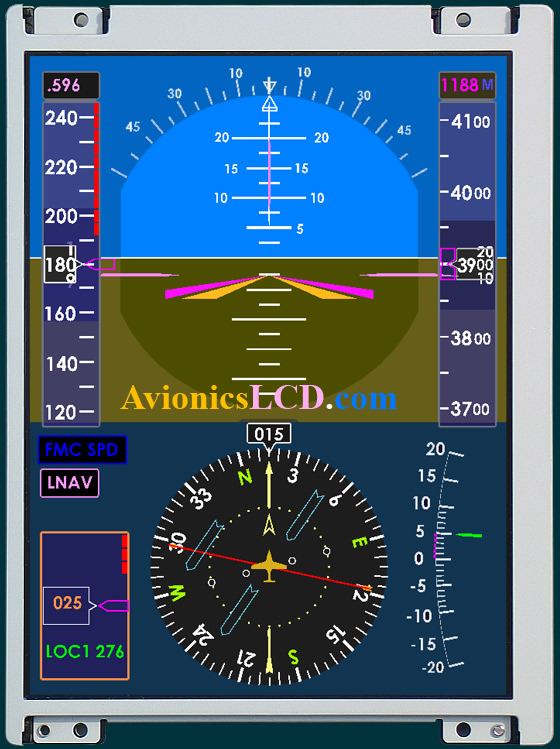

The Unparallel Super Fine Pitch  8.4" LCD Screen XGA  with X-Bri LED BL

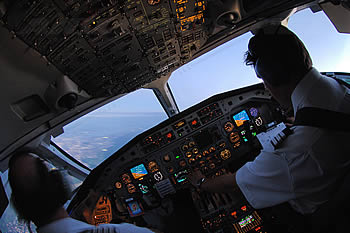

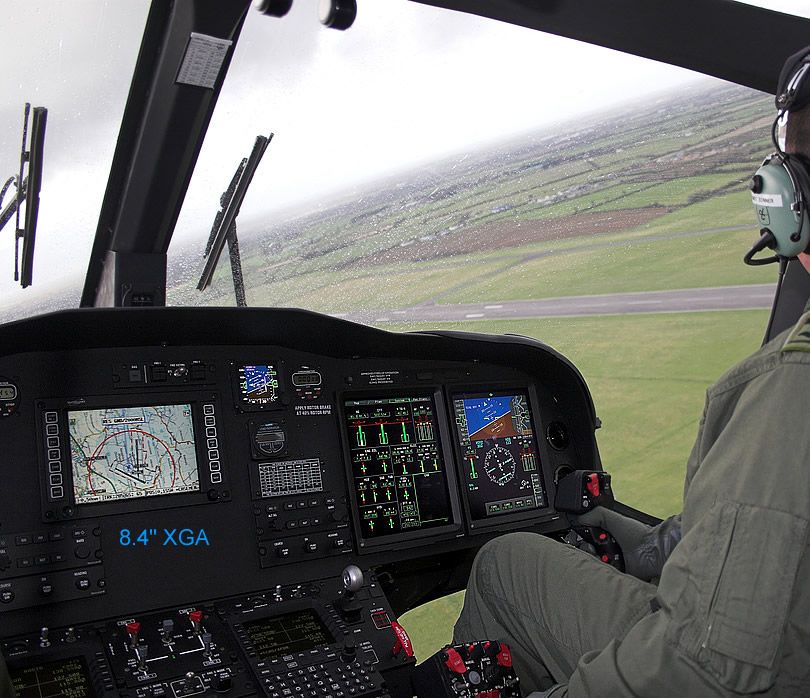

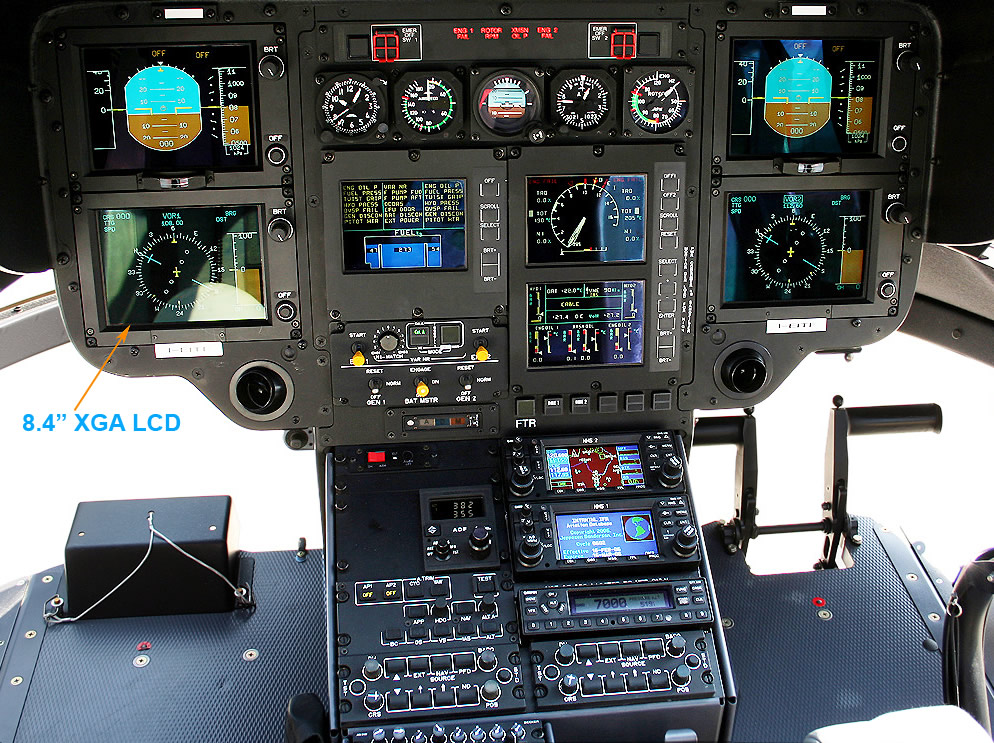

Application Reference

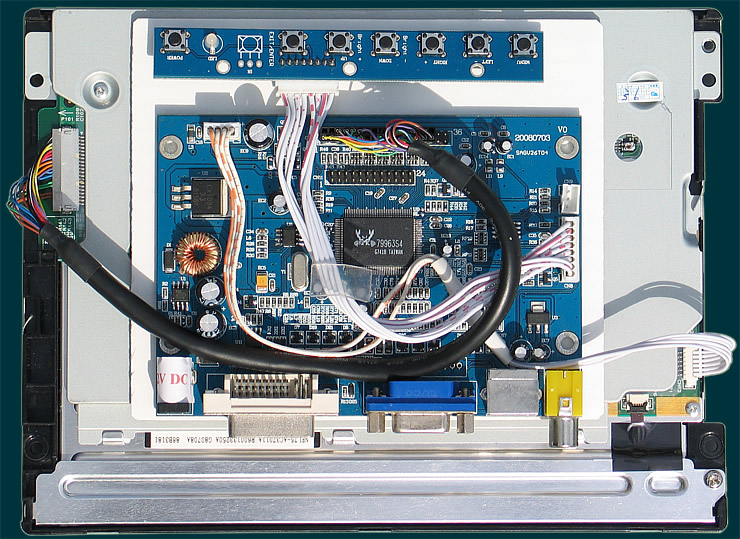

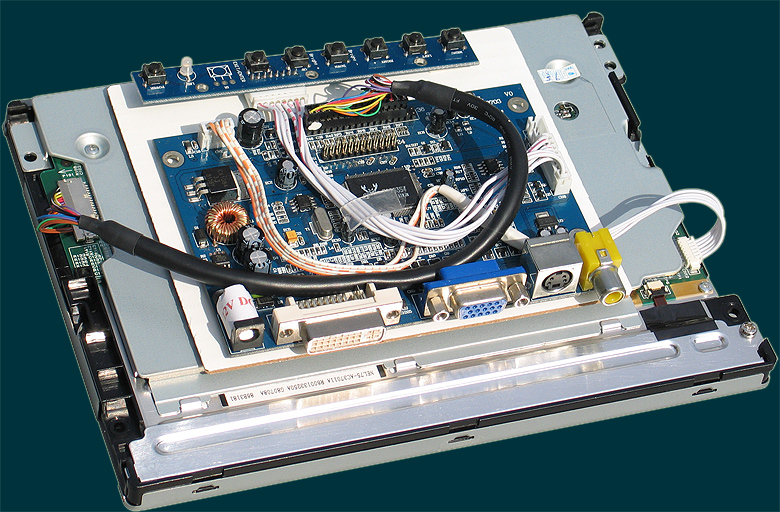

8.4" LCD XGA X-Bri LED BL

Sample Price  $  ( e-mail inquiry )

See our   VIP Customers   who use  this LCD

Specifications

Model name VT084XG-LE
Resolution 1024 X 768 XGA
Up Scalable to Virtual 1600 x 1200 UXGA
Screen size 8.4 " inch
Active area 170.5 W x 127.9 H mm
Input connectors VGA + DVI + Composite  NTSC Video
Overall dimensions (W x H x D ) 199.5W x 149.5 H x 12 D + 18 mm PCB
Brightness 400  CD / m 2   Our door readable !
Back light  type LED    70, 000 hours life.
Contrast Ratio 400: 1
Vewing Angle 120 H,   100 V   degree
Response  time ( ms ) Typ  8  ms
Power connection 12V DC  Jack Center pin is  " + "
Power consumption 10W  ,  800 mA current drag
Weight TBD
Operating temperature -20~ + 70 o C
Storage temperature -30 ~ + 80 o C

8.4" LCD Screen XGA X-Bri + Touch Screen &  USB controller   Sample Price  $ 789  Minimum order Qty is needed

Model name VT084XG-LE-TS

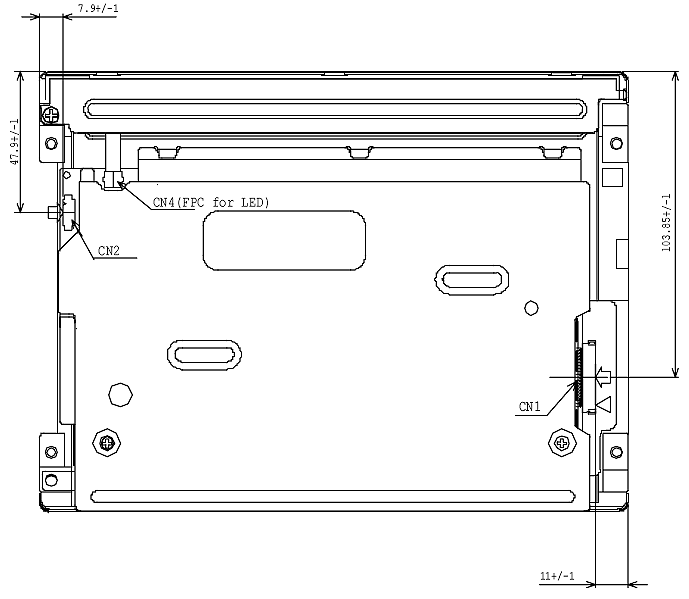

Mechanical Drawings

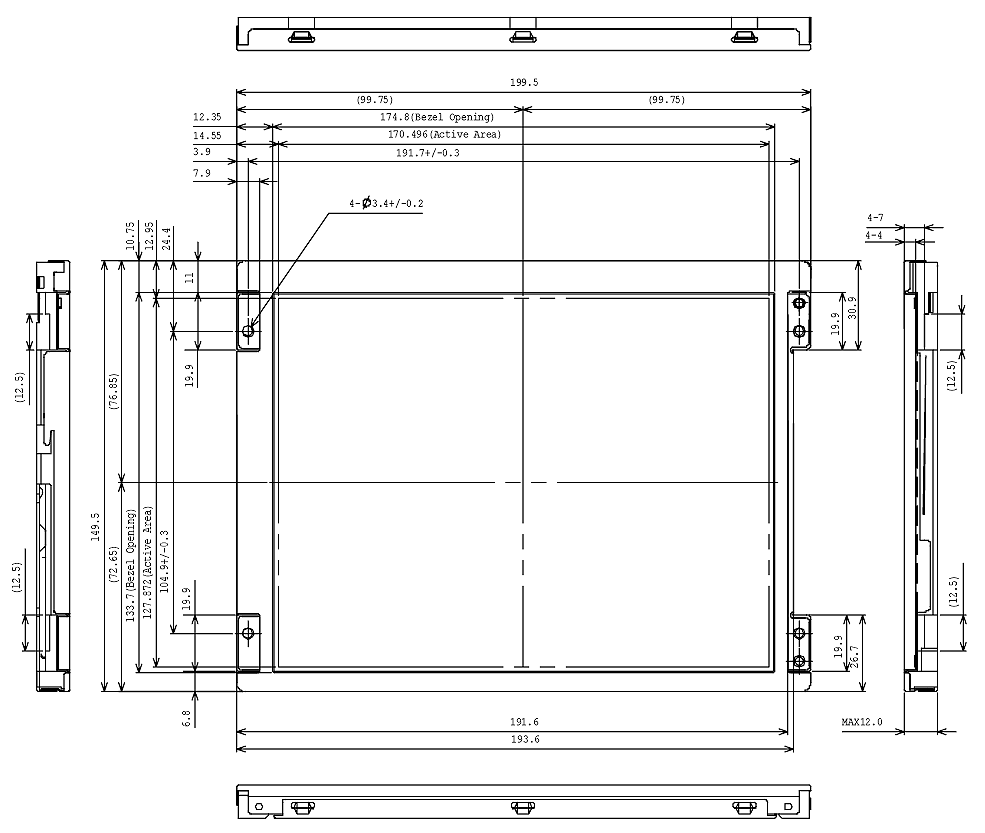

No Touch screen

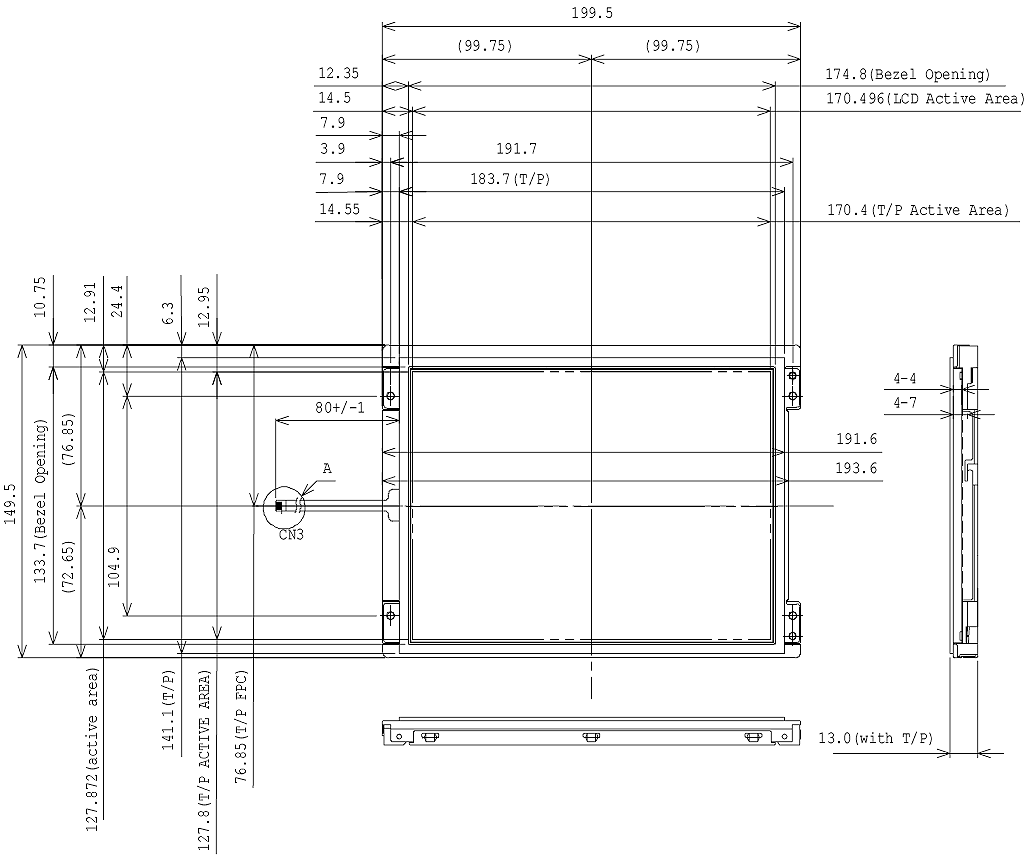

+ Touch screen,

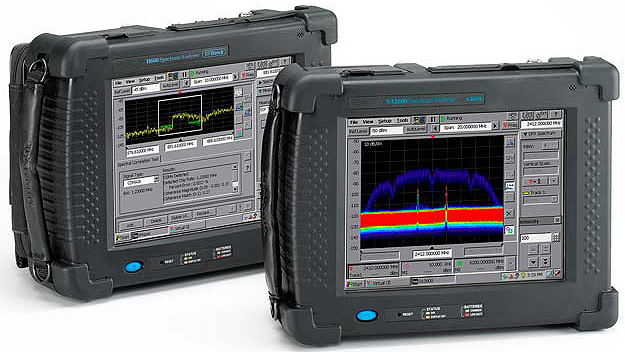

8.4" XGA LCD on handheld oscilloscopes and spectrum analyzers.

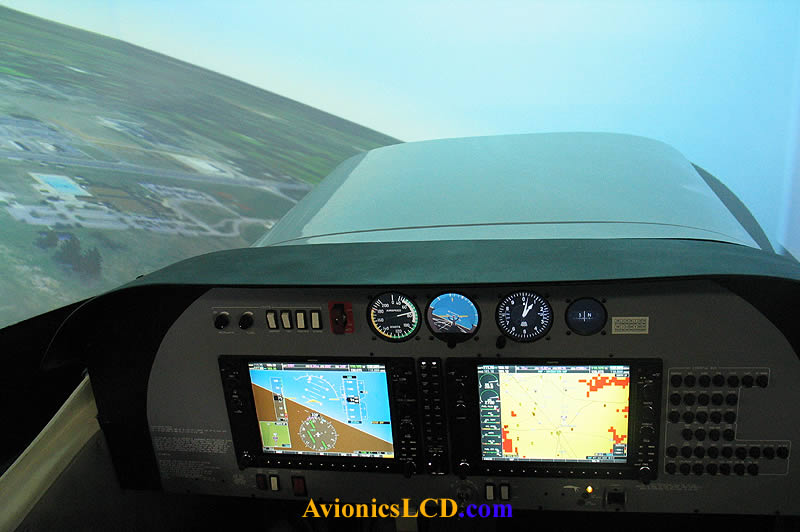

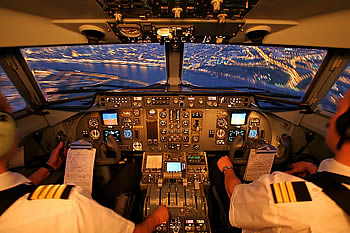

8.4" XGA LCD on flight simulation system
