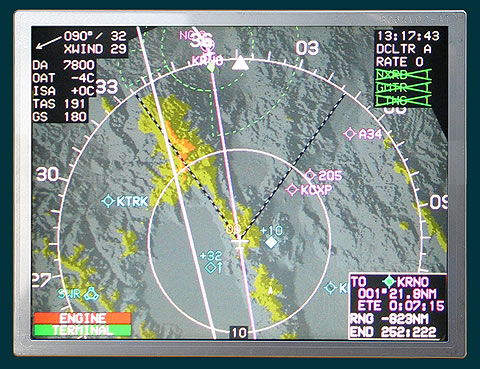

6.4" VGA 640x480 LCD, 6.5" inch VGA LCD Panel

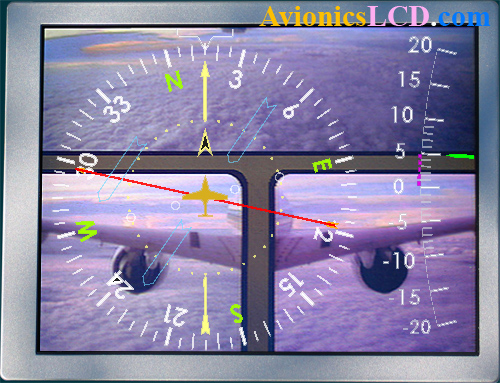

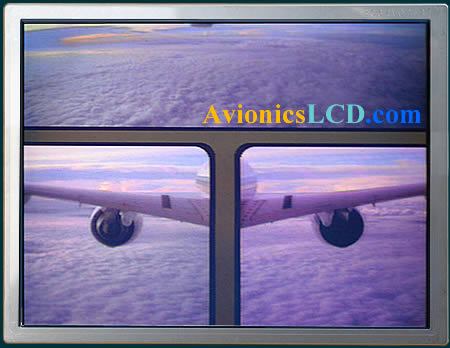

6.5" LCD Screen  640x480 VGAPanel Kit

Sunlight Readable ! LED Backlight !

See our   VIP Customers   who use  this LCD

                          Sample Price $ 398 USD   MOQ  2  pcs

                                    Specs of  The 6.5" LCD Sun Light VGA Screen

Model Name

 VT 065 VGAXBr-LE

Panel Size

6.5"

Active Area (mm)

132.48 x 99.36 mm

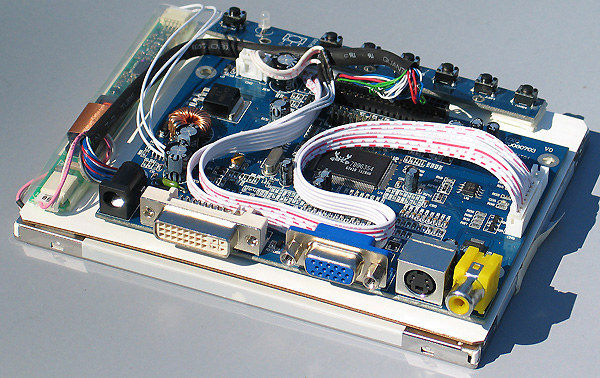

The LCD kit Outline
Dimension  (mm)

153 x 118 x 25 mm (with Driver PCB )

Native Resolution

640 x 480

Virtual Resolution Up Scale to 1280 x 1024  SXGA

Numbers of colors

16.2M / 262K colors

Brightness (cd/m2)

 700 cd / m 2

Contrast Ratio 600 : 1

Viewing Angle (U/D/R/L)

H70 /70 ,   V 60 /60

Input Interface

VGA port, +DVI + S-Video+ RCA Video

Supply Voltage

12V DC

Backlight

X-Bri LED array

Weight

170g ( panel )

Response Time

25 ms.

Panel Power Consumption

7~8 W

Operation Temp Range -30 C ~ + 85
Storage Temp Range -30 C ~ + 85

6.5" LCD Sunlight VGA Mechanical Drawings & Optical Characteristic Specs

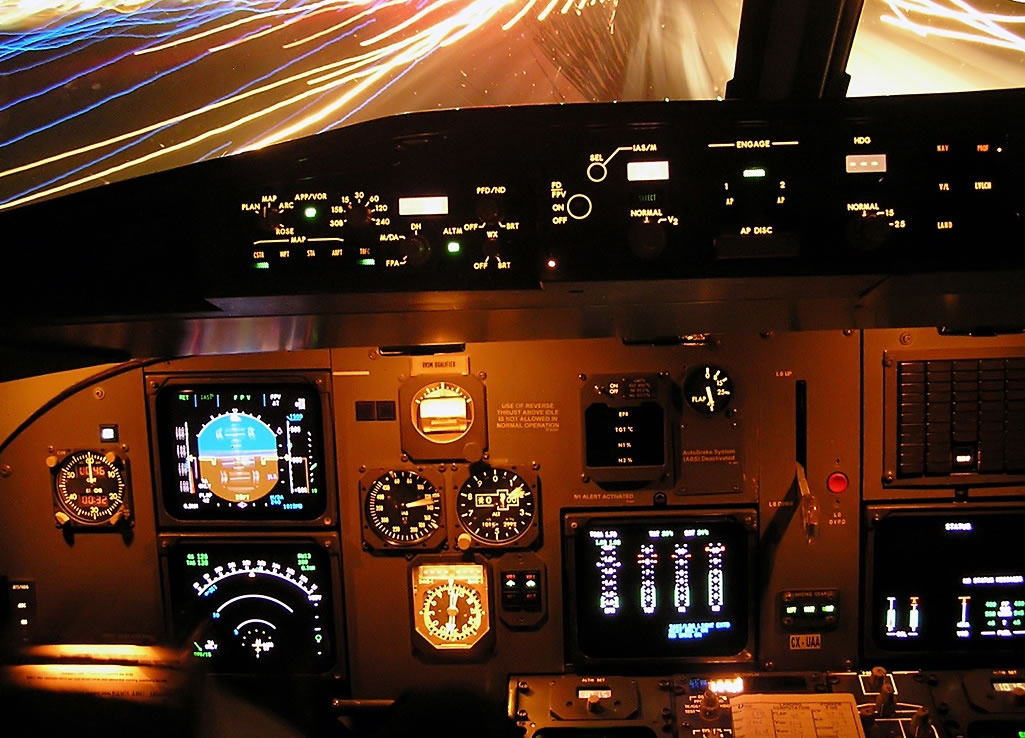

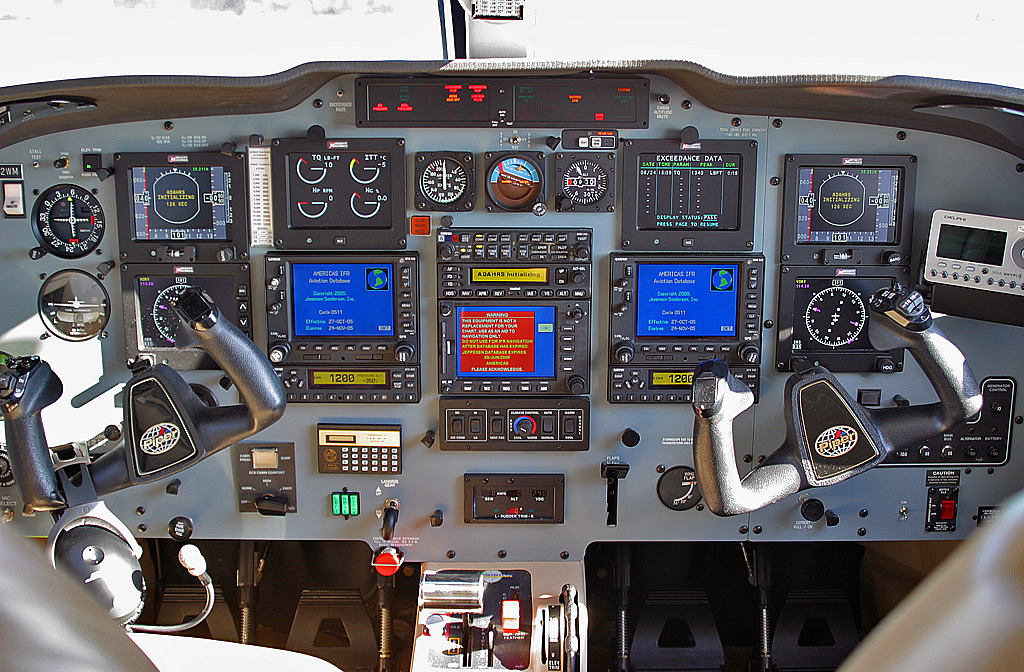

 Application Demos

Euro-Fighter  EF-2000 Typhoon

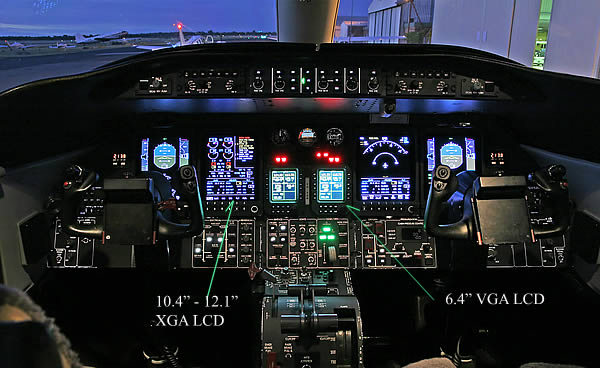

6.4 " LCD VGA x 2  + 10.4 LCD LCD XGA  x 4  on Learjet 45

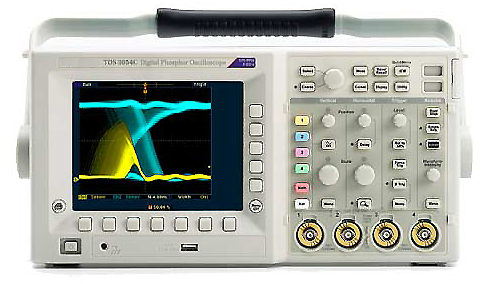

Application Reference on Oscilloscopes LCD display.



3.5" LCD Screen, 4.8" LCD 1024x600,  5" LCD Screen, 5.6" LCD, 5.7" LCD VGA,  6.3" LCD Screen XGA, 6.4" LCD, 6.5" LCD Screen VGA , 7" LCD Screen 1024x600, 8.4" LCD Screen XGA, 10.4" LCD Screen XGA , 12" LCD Screen, 12.1" LCD 1400x1050, 15" LCD Screen Panel UXGA 1600x1200, 15.4" LCD Panel 1920x1200, 15.6" LCD Screen Panel 1920x1080, 27" LCD Panel 2560x1440, 30" LCD Panel 2560x1600 WQXGA.

Avionics display, Jet Fighter Cockpit Display, Cockpit Simulation LCD Display, EFIS Flight Deck Display, Flight Simulation, Simulator Display, Flight Director LCD Display, Radar Monitor Display, Aircraft Integrated Cockpit Display, Horizontal Situation Indicator display, Flight Director, Flight Advisor LCD display, Integrated Cockpit Display System, HUD Heads Up Display, HMD Helmet Mount Display, UAV Miniature Auto Pilot Micro Module Display, Robotic Control on Body Ultra Compact Display,  PC104 System Display , Micro LCD Projector, Intelligent Mobile Device Display,  Mobile Command Center LCD Display, Night Vision Imaging Display, Submarine Console LCD Display, Mini Handhold PC LCD display, Palm Pilot PC Display, Portable Notebook PC Display,  Industrial Portable Testing Instrument LCD display, etc.
