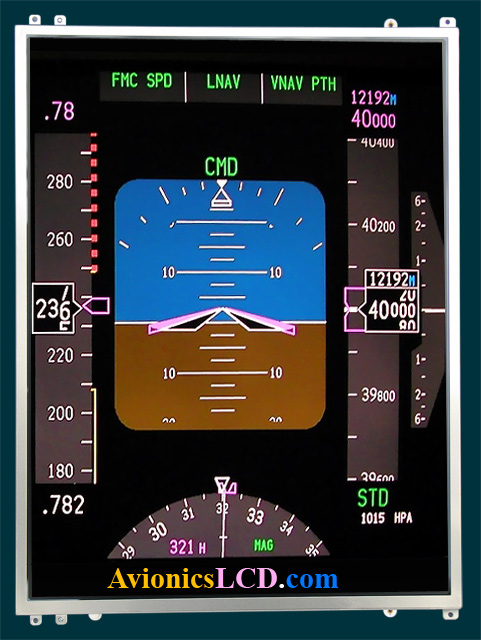

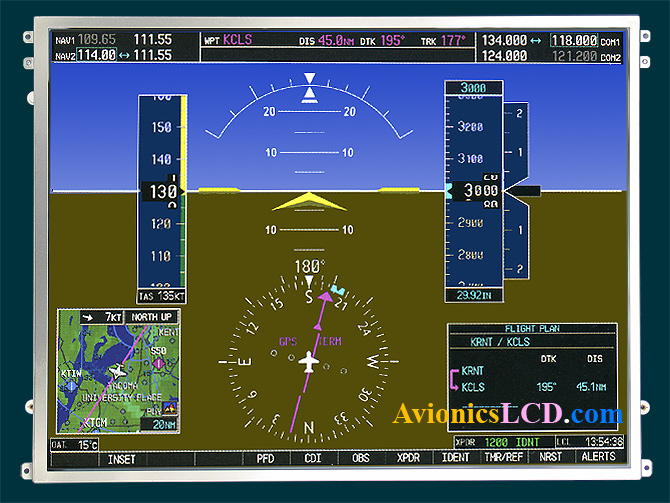

12" LCD Screen SXGA + LCD Super Fine Pitch1400x1050  145 dpi

The Highest Resolution 12" 4 :3 Ratio LCD In The Industry.



Sample price $ Discontinued ! )

See our VIP Customers



HDMI + DVI + VGA 3 Inputs. Capable to Display HDTV 1080 i, 1080p Format



Super Fine Resolution   1400X 1050  Wide View Angle:       180 /180
High Contrast Ratio:      600:1
Fast Response:               25 ms

Wide View Angle

Wide View Angle: 180 /180
High Contrast Ratio: 450:1
Low Power Consumption: 3.7W

VGA + DVI + HDMI 3 in 1 connection. Capable Display HDTV 1080i, 1080p  Format

Cockpit Flight Deck Avionics Display, Simulator & Simulation Display

Most Ideal for Air Bus & Boeing Commercial Aircraft  flight simulation display.

12" LCD Screen Specifications

VT-121P01-SX

Size

12.1"

Outline Dimension (mm)

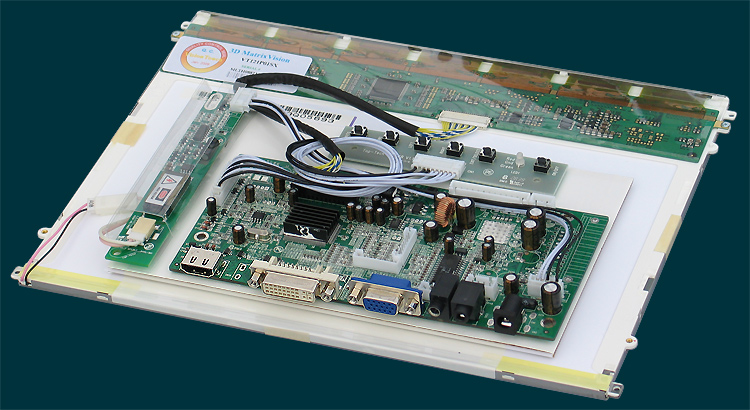

270 W x 199 H x 27 D ( with A/D Driver board)

Active Area (mm)

245.6H x 184.3V,  9.67" x7.25 "

Resolution

1400x1050  SXGA

Pixel Pitch (mm)

0.24 H x 0.24V

Weight (g)

315 Max

Number of Colors

262,000

Supply Voltage (V)

12 V

Power Consumption (W)

15 W

Brightness (cd/m2)

200

Contrast Ratio

600 :1

Backlight

1 CCFL

Viewing Angle (L/R/U/D)

89/89/89/89

Signal Interface

LVDS 1ch

Response Time (ms)

35 typ.

Decoder board dimensions

 TBD

Wide Viewing Angle TFT Technology

A Fringe Field Switching

Storage Temperature

(-20C ~ 60C)

Operation Temperature ( 0C ~ 50 C)   240 hours test

12" LCD Screen 1400x1050  Engineering Specs


12" LCD Screen SXGA,

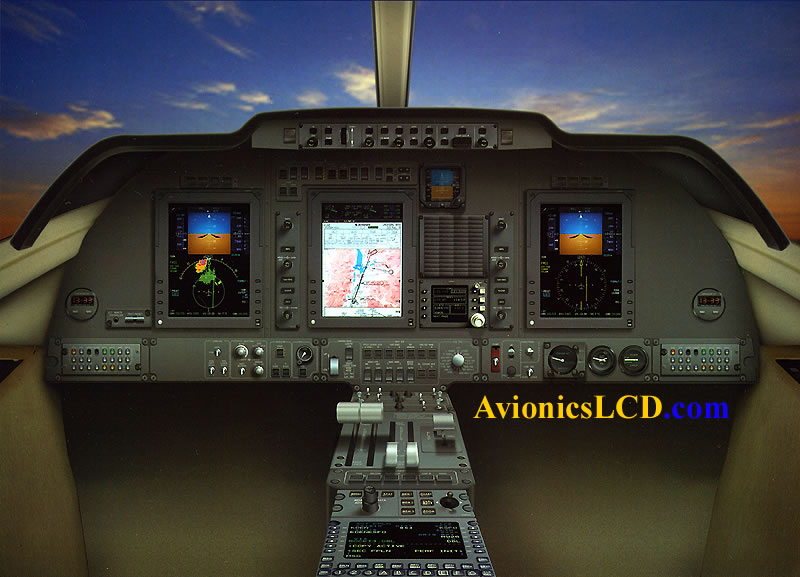

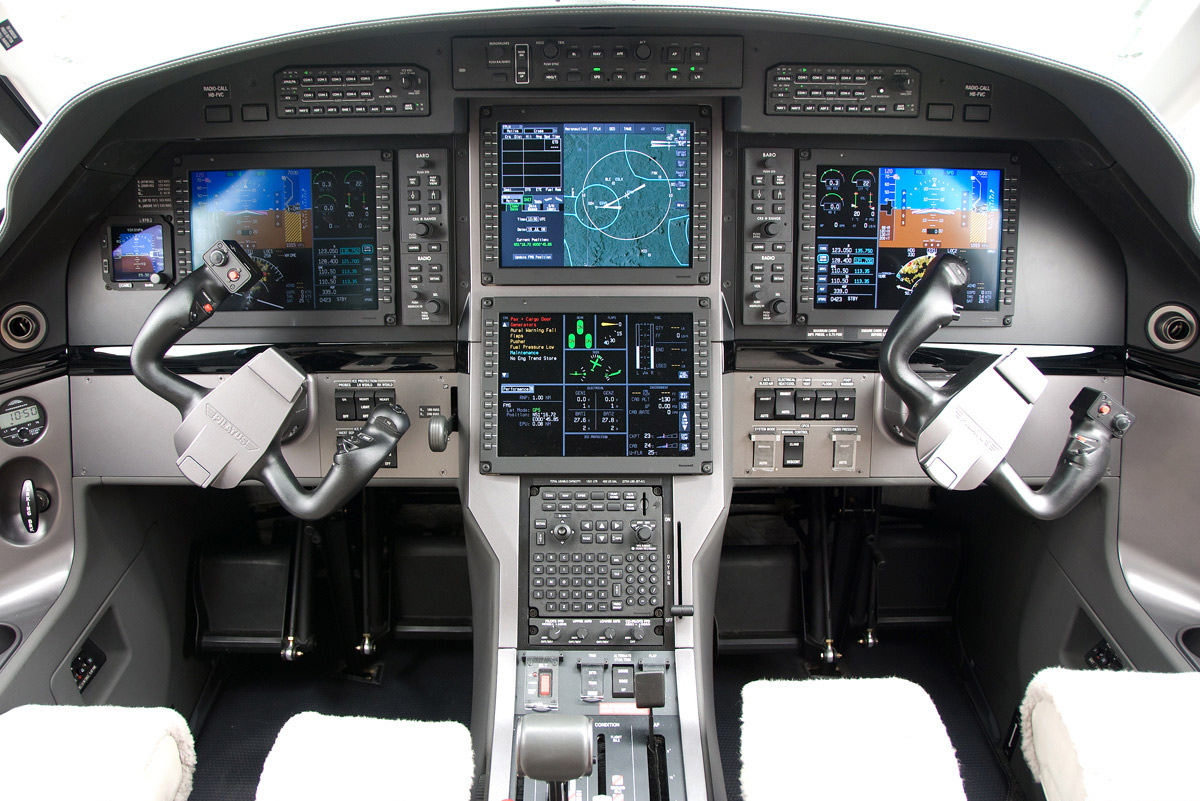

Application Demo

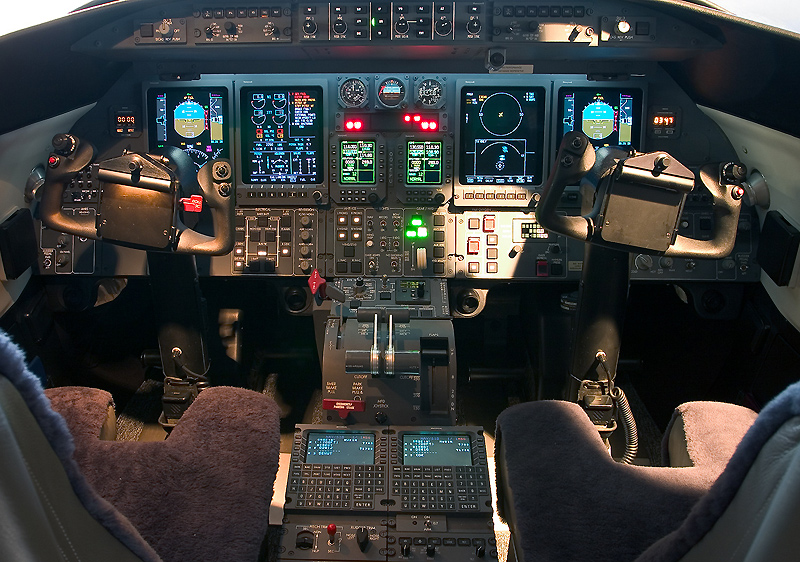

LearJet  - 45  Cockpit  Avionics EFIS
