28 " LCD Panel Monitor inch WQXGA 3840 x2160
Ideal for Aero
Space Aircraft Design,

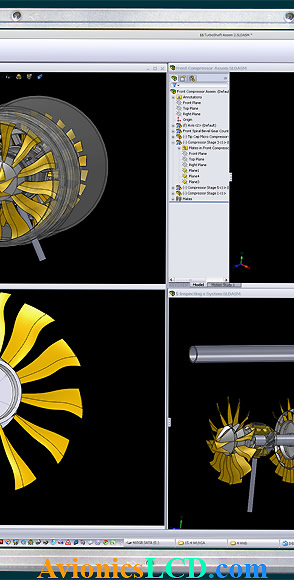

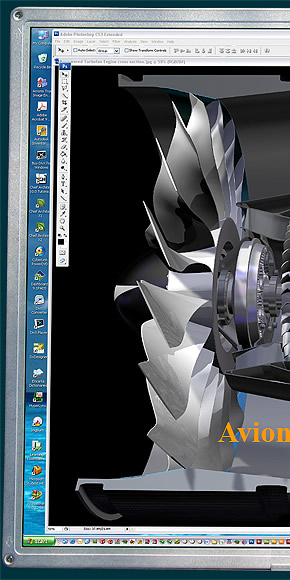

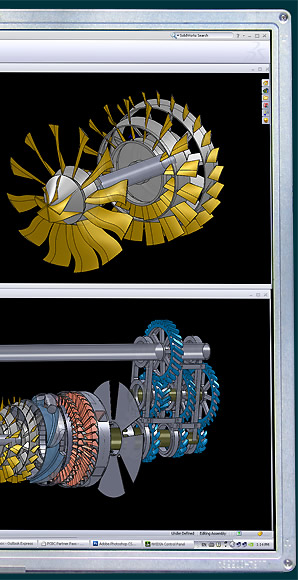

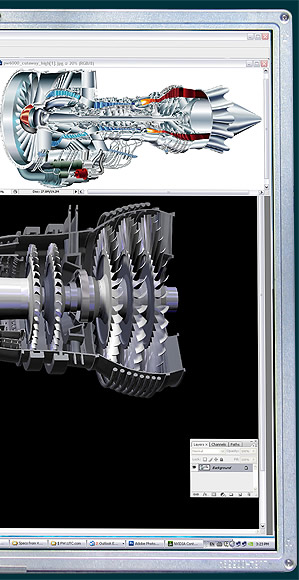

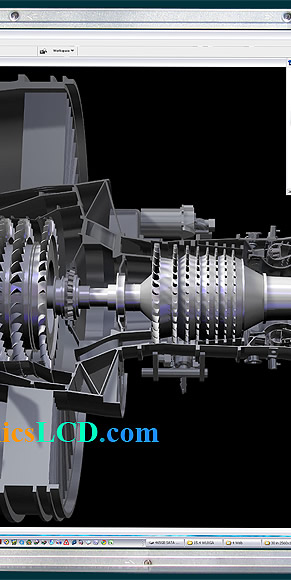

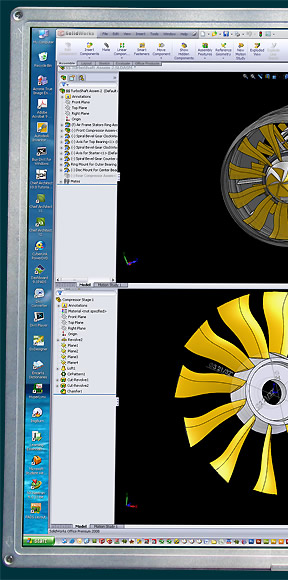

Commanding Control Center Monitor, CAD /CAE / CAM Design Monitor
Ultra bright back light
density, 80%
color
gamut. The vivified and
intensified color saturation
even surpassing the international standard for
high-definition television.

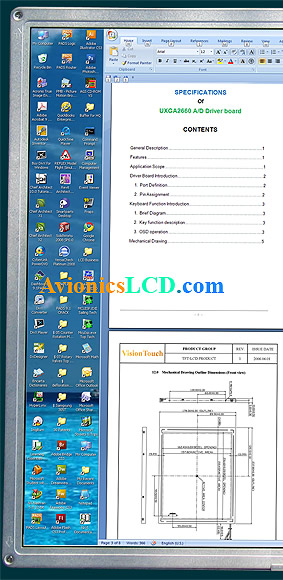

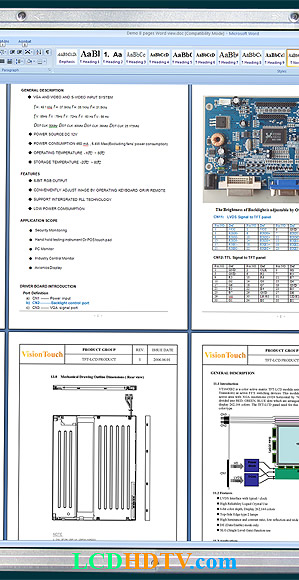

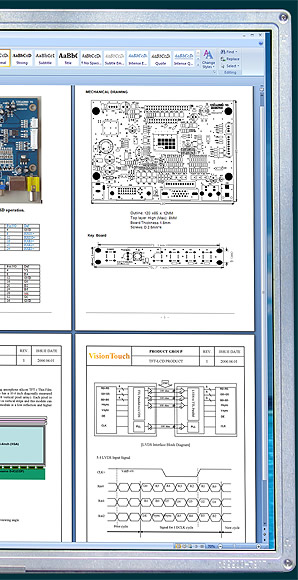

View & edit 8 pages Word .doc file or .pdf file at one screen

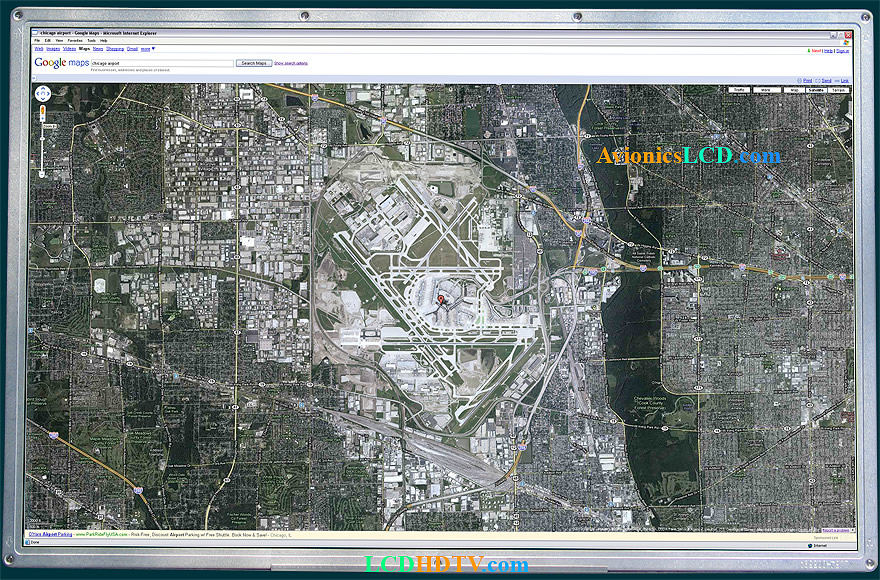

28 " LCD Panel Monitor 2560 x1600
, Most Productive
Graphic Design WorkStation LCD Monitor.
Price $589 / set
Specifications
Ideal for
PCB Layout , Architectural Design Monitor, Stock Market Trade monitoring
etc.
|
Model Name
|
VT-LU28D -XBri |
|
Resolution
|
3840 X2160 WQHD |
|
Screen Size
|
28 " inch Diagonal, 16 : 10 ratio |
|
Pixel Pitch
|
0.2 x 0.2 mm |
|
Pixel format
|
S-PVA mode ( Super Patterned Vertical Alignment ) |
|
SIgnal Input Interfaces |
Dual link DVI -D 24 pin + HDMI + VGA +
DP-Display Port ( for both PC & Apple ) |
|
LCD Overall Dimensions |
26"W x 15" H x 1" D
+5/8 " 2nd stage back cover |
|
Brightness
|
400 CD / m 2
X-Bri |
|
Back Lights
|
LED
3,0000 hour life. |
|
Contrast Ratio
|
1000: 1 |
|
Viewing Angle
|
178°
H, 178°
V degree ( CR >= 10 ) ; |
|
Display Colors
|
8 bit 16.7 Millions Color |
|
Color Gamut
|
72% |
|
Color Temperature
|
9000 K |
|
Response Time ( ms )
|
6.5 ms, |
|
Power Input
|
24V DC , 5
24V DC Jack. Center pin
is
+ |
|
Power Consumption
|
110 Watt. |
|
Included Accessories |
14V x 4A AC-DC Power Adapter,
DVI-D Dual
Link cable. |
|
LCD
Monitor Weight ( without stand )
|
5 Kg |
|
Screen
Surface Treatment
|
Haze 44 %, Hard-coating ( 3H ) , Anti glare |
|
Operation Surface Temperature
|
0 ~ + 50 °C |
|
Storage Temperature
|
- 20 ~ + 60 °C |
|
Operating Altitude |
0-10,000 feet ( 3,048 Km ) |
|
Max Main Frequency via DVI-D
|
F-DCLK 134.25 MHz |
|
Compliances
|
RoHS, Pb-free Compliances |
| |
|
