New Release !    Breath-taking  27 " LCD Versatile Display Monitor,

2560 x1440 WQXGA X-Bri  LED back light , Highest Resolution Display in the Market

The LCD Monitor Specialized  for  Professional Design

  Ideal for Aero Space, Aircraft  CAD /CAE / CAM Engineering Design, Simulation & Design Workstation

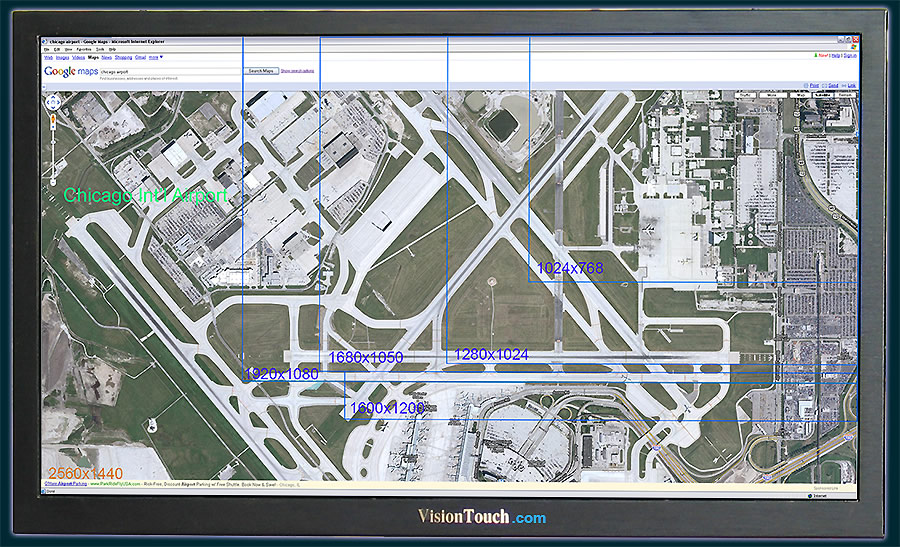

Ideal for Air Traffic Control Tower , Control Center Massive Information Display ,  Air  Surveillance,  GPS Flight Air Map Display





Works with both PC & Apple

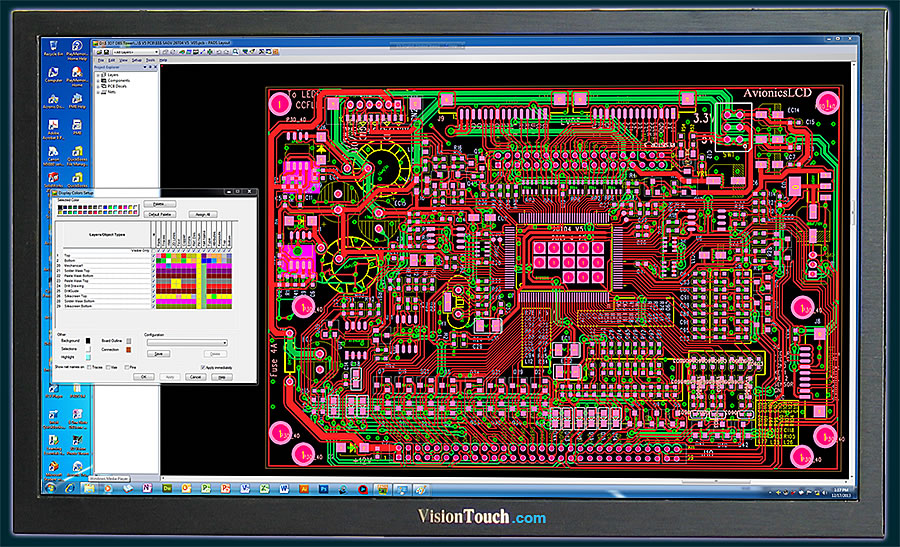

Ideal for Electronic Circuit  PCB Layout Design & EDA  Work Station

Ideal for Architectural Design , 3D Animation Design & Movie Filming Editing Display Monitor.

and for Stock Market Information Display Monitor as well.





Display 3 full pages of 8.5 " X 11" Information horizontally

Most Productive Professional Design Monitor in the Market !

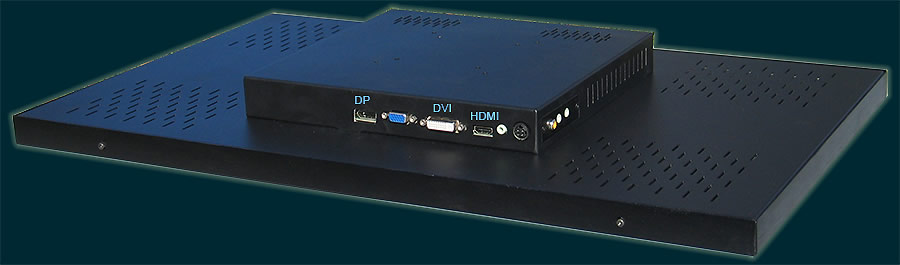

Back View



Sample price only $ 798 ( MOQ 2 pcs )  Promotion before Christmas Eve

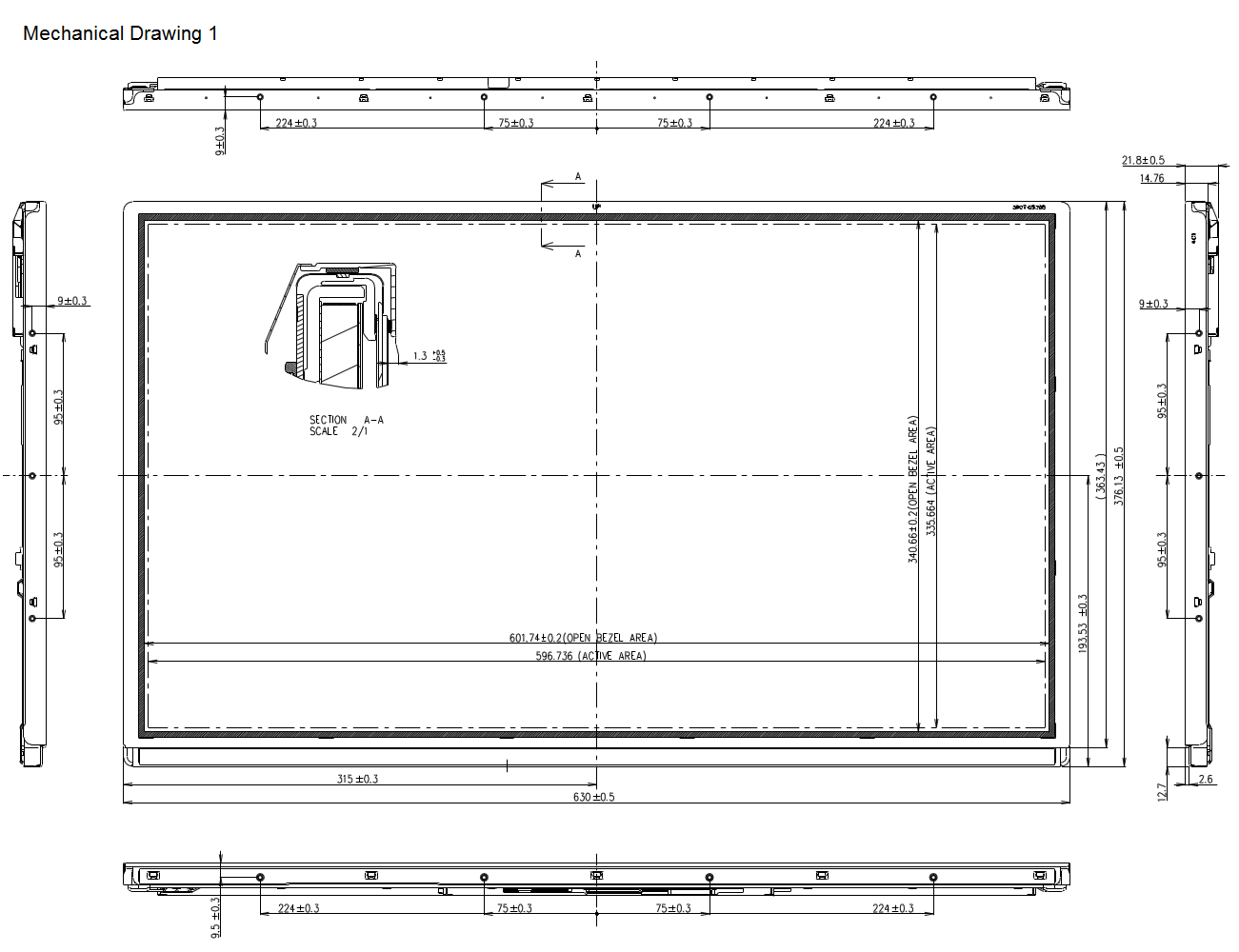

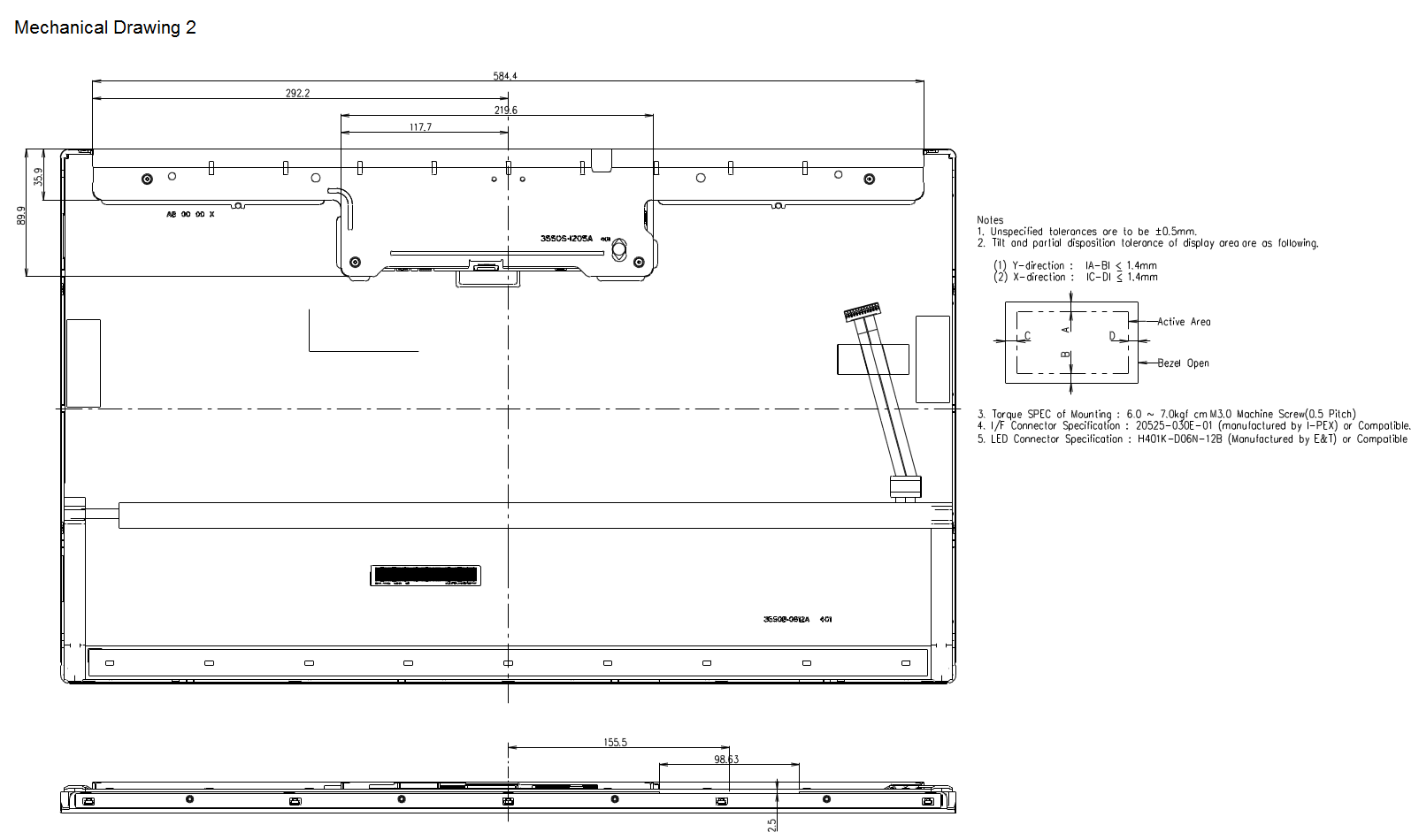

The 27" LCD Panel Mechanical Drawings



Specifications

Model  Name

VT270WQ-XBrLED

Resolution

2560x1440 WQXGA

Screen Size

27 " inch Diagonal, 16 : 10  ratio   IPS  LCD

Pixel  Pitch

0.233 x 0.233 mm

Pixel format

S-PVA mode  ( Super Patterned Vertical Alignment  )
SIgnal Input  Interfaces Dual link DVI -D  24 pin + HDMI  + VGA +
 DP-Display Port  ( for both PC & Apple )
LCD Overall Dimensions 25"W x 15" H x 1" D
+1-3/8 " 2nd stage back  cover

Brightness

420  CD / m 2   X-Bri

Back  Lights

LED    3,0000 hour life.

Contrast  Ratio

1000: 1

Viewing  Angle

178 H,  178 V   degree  ( CR >= 10 ) ;

Display  Colors

8 bit  16.7  Millions Color

Color Gamut

72%

Color Temperature

9000 K

Response  Time ( ms )

6.5  ms,

Power Input

24V DC ,  5  24V DC Jack.  Center pin is  +

Power  Consumption

110 Watt.
Included Accessories 24V AC-DC Power Adapter,
DVI-D Dual Link cable.

LCD Monitor Weight ( without stand )

 5.6 Kg

Screen  Surface Treatment

Haze 44 %,  Hard-coating ( 3H ) , Anti glare

Operation Surface Temperature

     0 ~ + 50 C

Storage Temperature

 - 20 ~ + 60 C
Operating  Altitude 0-10,000 feet ( 3,048 Km )

Max Main Frequency  via DVI-D

F-DCLK  134.25  MHz

Compliances

RoHS,  Pb-free Compliances
Call  1- 800-828-6088  in USA

1- 408-420-3388  International

3DMatrixVision Corp.

 Linvents  Century Labs Inc.
