15 " inch UXGA V2 LCD Screen, 4:3 Ratio 1600x1200

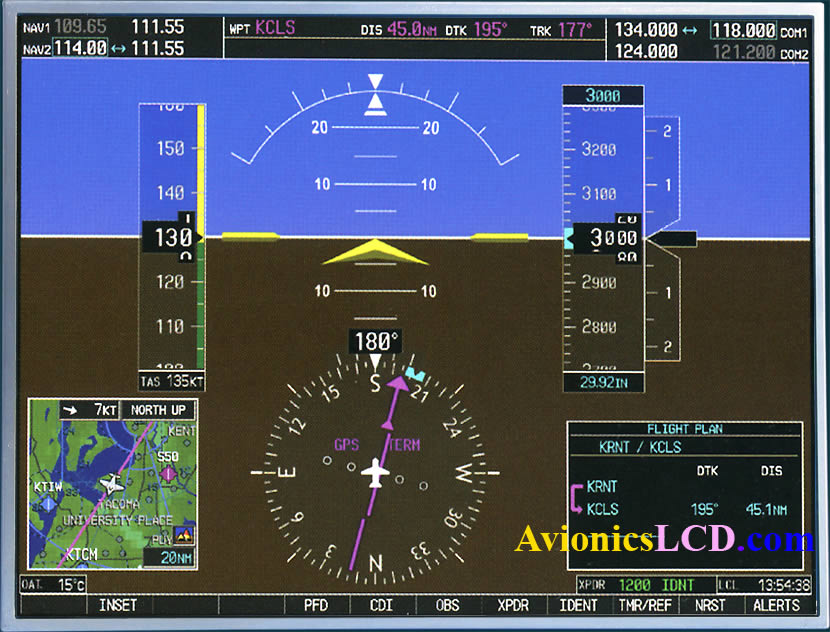

The only LCD screen in the industry that match to

Boeing 787 Dreamliner Flight Deck Avionics Display

New model LED  Backlight 1600x1200 Super Fine Pitch 133 dpi Intensity



Wide Viewing Angle: 180/180,   High Contrast Ratio: 500:1
  Ideal for Boeing 787 Dreamliner Flight Simulators

HDMI + DVI + VGA 3 Inputs. Capable to Display HDTV 1080 i, 1080p Format

New model Sample price $ 768 USD

See our VIP Customers  Who use this LCD

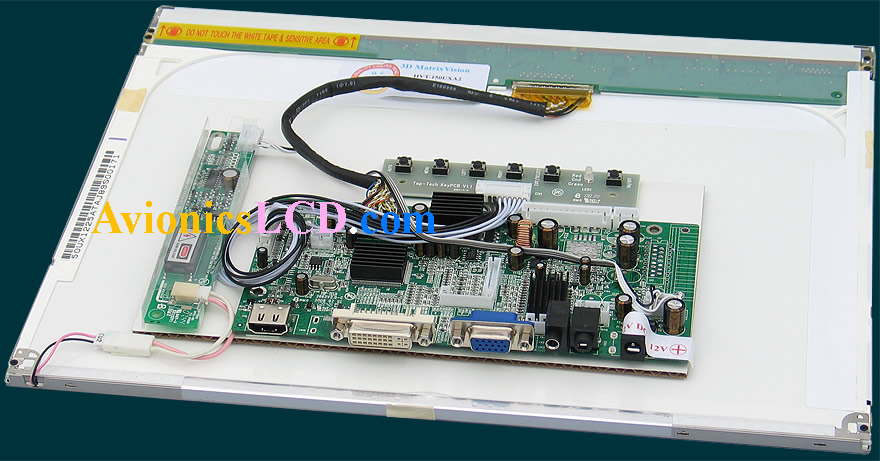

More Photo views

15 " LCD Screen Specs

Screen size   15.0"
Model   HVT-150UX2-LE  New model
Resolution   UXGA
Outline Dimension (typ.) mm 317.3(W)243.0(H) 7(D mm                               +  20 mm depth of A/D board
Active Area mm 304.8(H)228.6(D)   Screen Dims 307 x 231
Number of Pixels   1600(H) 1200 (V)
Pixel Pitch mm 0.191(H)0.191(V)
Weight lbs 510 g  panel,  1.8 lbs  (with PCB driver board  )
Number of Colors   262 k
Supply Voltage V 3.3
Power Consumption   5.11 Watts  (TFT Power 1.65 W+ LED BL Power 3.46 )
Brightness (typ.) cd/㎡ 230 typ.
Contrast Ratio   600 : 1
Backlight   SMD LED 54 EA  Array  Bttom edge
LED Driving Block   Inclued in LCD, PWM dimming control
View Angle (typ.)
(CR 10:1) L/R
  170 H ,  170 V
85 / 85
Signal Interface   LVDS 2ch
Response Time ms 45
Operating Tempeature C  0 C  ~  + 50 C
 StorageTempeature C  -20 C  ~  + 60 C
Wide Viewing Angle TFT Yes A Patented  Fringe Field Switching TFT Tech

15 " LCD UXGA Screen Engineering Specs



Integrated on Boeing 787 Dreamliner flight deck avionics !

12 , 12.1 inch SXGA LCD, 15 , 15.1 inch UXGA LCD panel for Avionics display, Aviation Cockpit Display & EFIS Flight Deck Display, Flight Simulation, Simulator Display, Flight Deck LCD Displays , Avionics LCD Display, Flight Simulation LCD Display, Aviation Integrated Cockpit Display, EFIS Electronic Flight Information Display Aviation Flight Director LCD Display, Flight Deck Instrument LCD display,
Aviation Traffic Advisory Display, Mini PC System display, Radar Monitor LCD Display, Horizontal Situation Indicator display, Integrated Cockpit LCD Display System, Flight Director, Flight Advisor LCD display, HUD Heads Up Display, HMD Helmet Mount Display etc

Flight Deck Instrument Panel Avionics Displays Applications

Aircraft Flight Director Systems Display, Attitude Director Indicator ADI, & Heading Indicator Display ; Autopilot Altimeter Display, Horizontal Situation Indicator HSI, Airspeed & Vertical Speed Indicator Display , Turn & Slip Indicator, Turn Coordinator Display, Power Instruments / Engine Instrument Display, March meter Display; Magnetic Compass Indicator & GPS Navigation Display; .  Gyroscopic Instrument Display. Gyro Heading Indicator Display. Engine Tachometer / RPM Display.

Boeing 787 Dreamliner Flight Deck Applied with 5 of 15" UXGA LCD



Aviation Flight Simulation LCD Display,  Avionics Flight Simulator LCD Display,

Cockpit Display, Flight Deck LCD Display Solutions.

Boeing 787, 777 EFIS Display,  Flight Simulation Display,  Flight simulator Display,

Airbus A330, A380 Flight Simulation Display,  GPS Navigation Display, Radar, Head Up Display.

Beriev, Cessna Flight Simulation, General Aviation Flight Instrument Display



Video Tour on Boeing 787 Dreamliner Flight Deck Avionics

Cockpit view Boeing 787 Take Off





15" UXGA LCD Screen on G-IV-XGulfstream G450




15" LCD Screen UXGA Applied on Portable Testing Oscilloscopes or on Multi-functional  Industry PC



3.5" LCD Screen, 4.8" LCD 1024x600,  5" LCD Screen, 5.6" LCD, 5.7" LCD VGA,  6.3" LCD Screen XGA, 6.4" LCD, 6.5" LCD Screen VGA , 7" LCD Screen 1024x600, 8.4" LCD Screen XGA, 10.4" LCD Screen XGA , 12" LCD Screen, 12.1" LCD 1400x1050, 15" LCD Screen Panel UXGA 1600x1200, 15.4" LCD Panel 1920x1200, 15.6" LCD Screen Panel 1920x1080, 27" LCD Panel 2560x1440, 30" LCD Panel 2560x1600 WQXGA.

Avionics display, Jet Fighter Cockpit Display, Cockpit Simulation LCD Display, EFIS Flight Deck Display, Flight Simulation, Simulator Display, Flight Director LCD Display, Radar Monitor Display, Aircraft Integrated Cockpit Display, Horizontal Situation Indicator display, Flight Director, Flight Advisor LCD display, Integrated Cockpit Display System, HUD Heads Up Display, HMD Helmet Mount Display, UAV Miniature Auto Pilot Micro Module Display, Robotic Control on Body Ultra Compact Display,  PC104 System Display , Micro LCD Projector, Intelligent Mobile Device Display,  Mobile Command Center LCD Display, Night Vision Imaging Display, Submarine Console LCD Display, Mini Handhold PC LCD display, Palm Pilot PC Display, Portable Notebook PC Display,  Industrial Portable Testing Instrument LCD display, etc.

The LCD Wide Viewing Angle FFS TFT Technology
