Drawings & Dimensions



Work Flow Principle



General Specifications

Parameter

Specification

Unit

Remarks

Active area

245.70 (H) X 184.275 (V) (12.1 diagonal)

mm



Number of pixels

1400(H) 1050(V)

pixels



Pixel pitch

0.1755(H) 0.1755(V)

mm



Pixel arrangement

RGB Vertical stripe





Display colors

262,144

colors



Display mode

Normally Black





Dimensional outline

270.0+/-0.3(H)X199.0+/-0.3(V)X 4.8  Typ @ Lamp , 6.7 Typ @Pouch

mm

Note 1.

Weight

305 g (typ.), 315 g (Max.)

g



Surface treatment

AG(H40%)/2H





Back-light

Bottom edge side, 1-CCFL type



Note 2.

Power consumption

P D : 0.9        P BL : 3.2

W



P total : 4.1

W



Optical Specifications

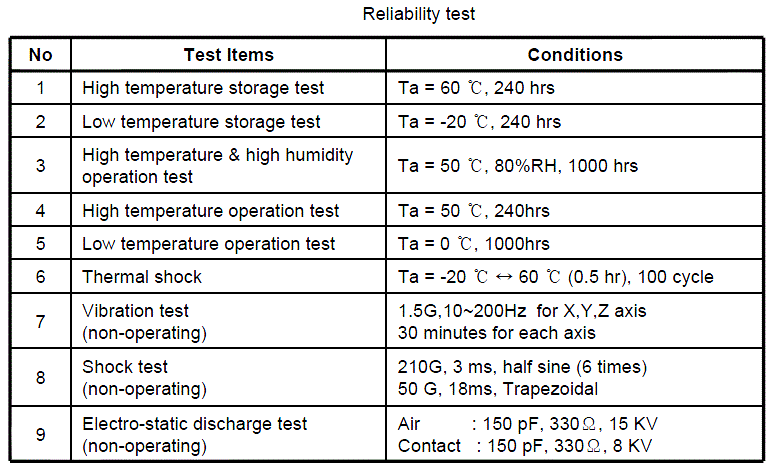

Temperature Rang
